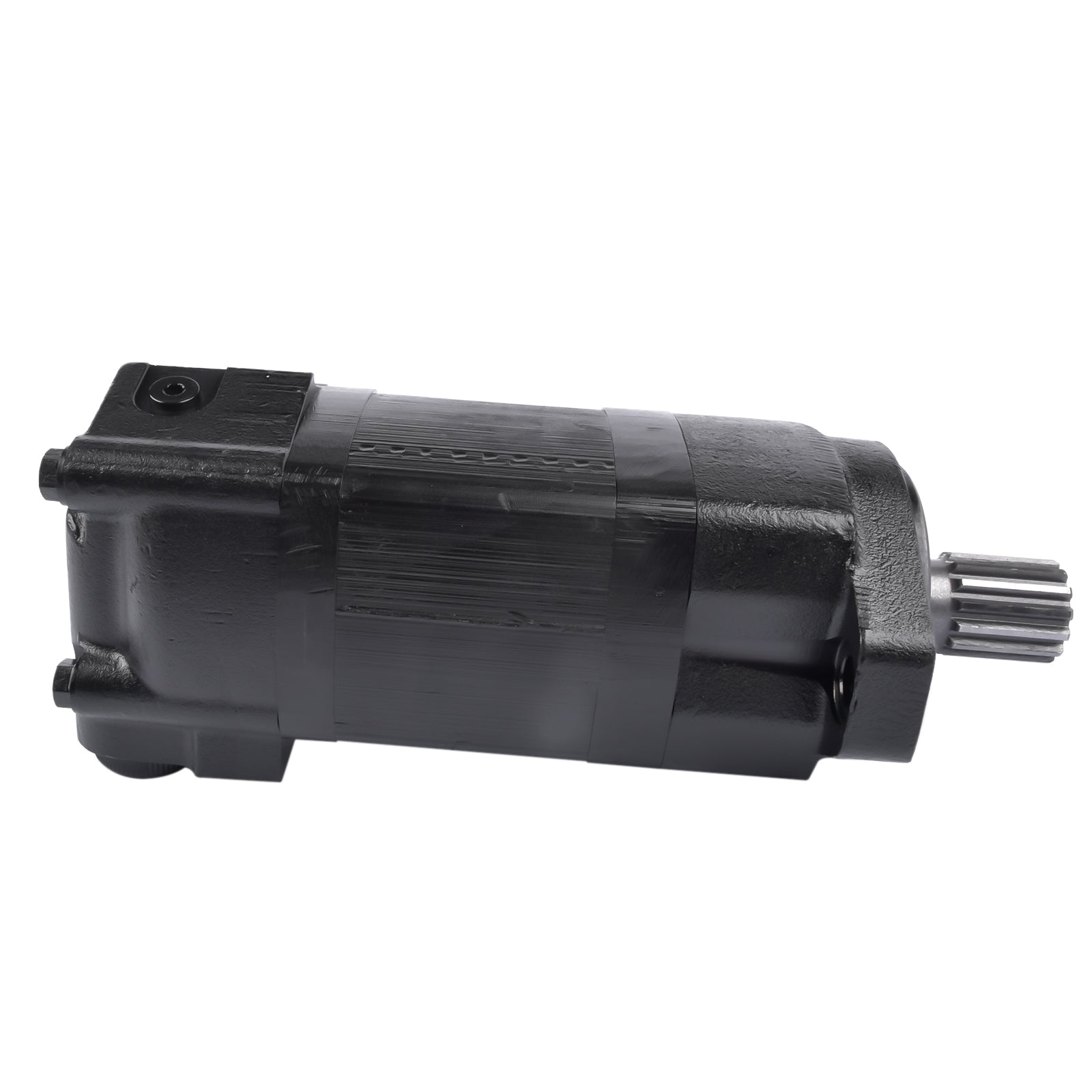

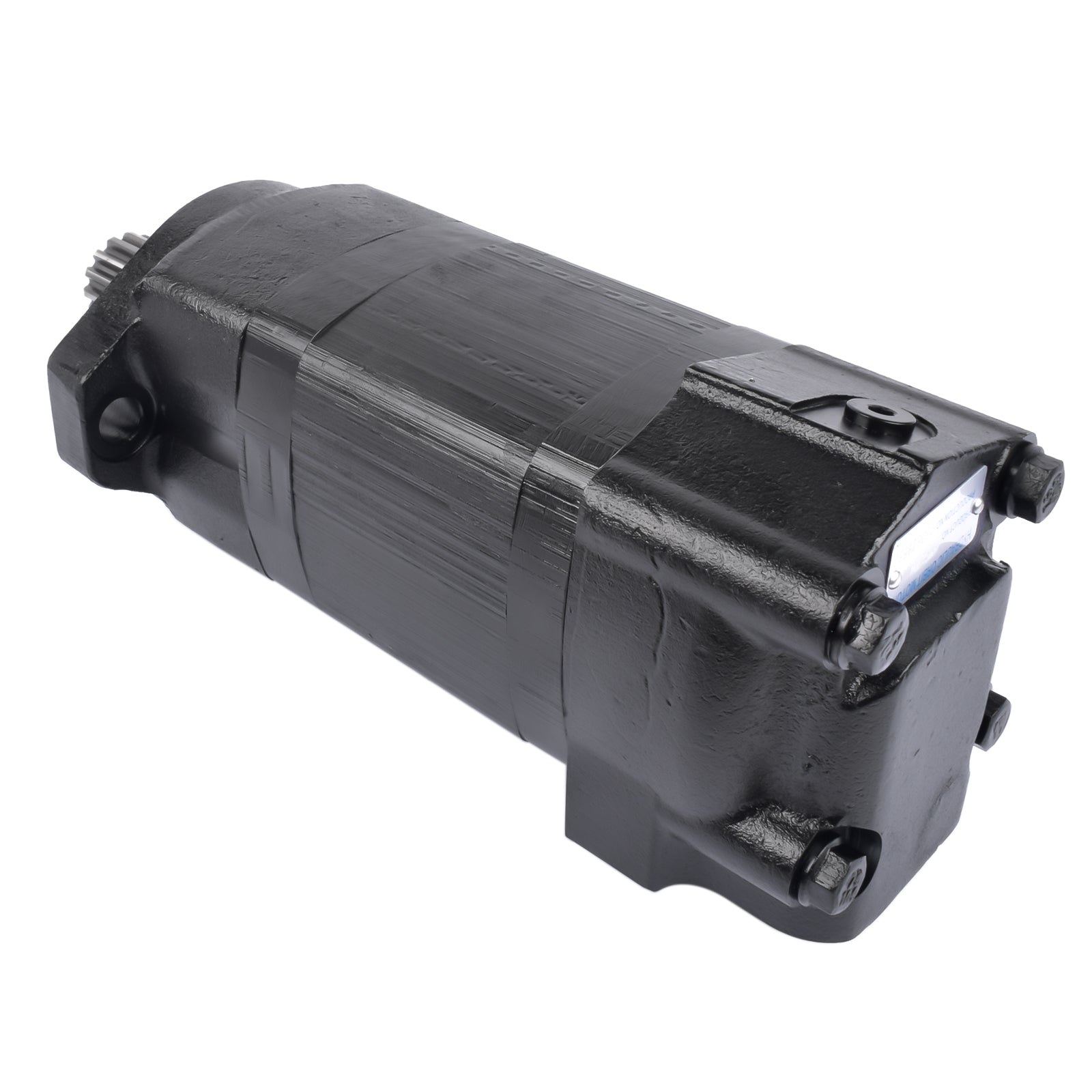

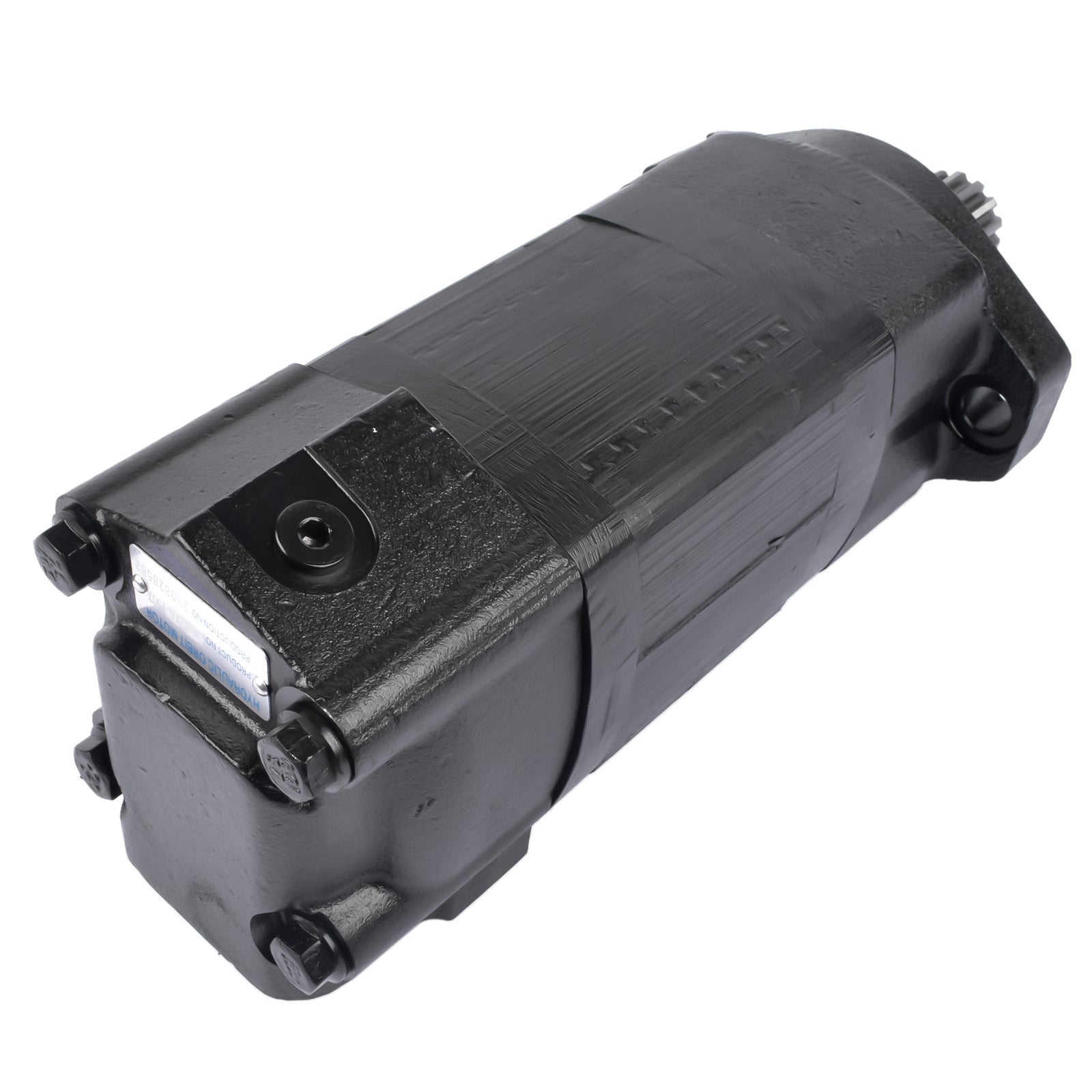

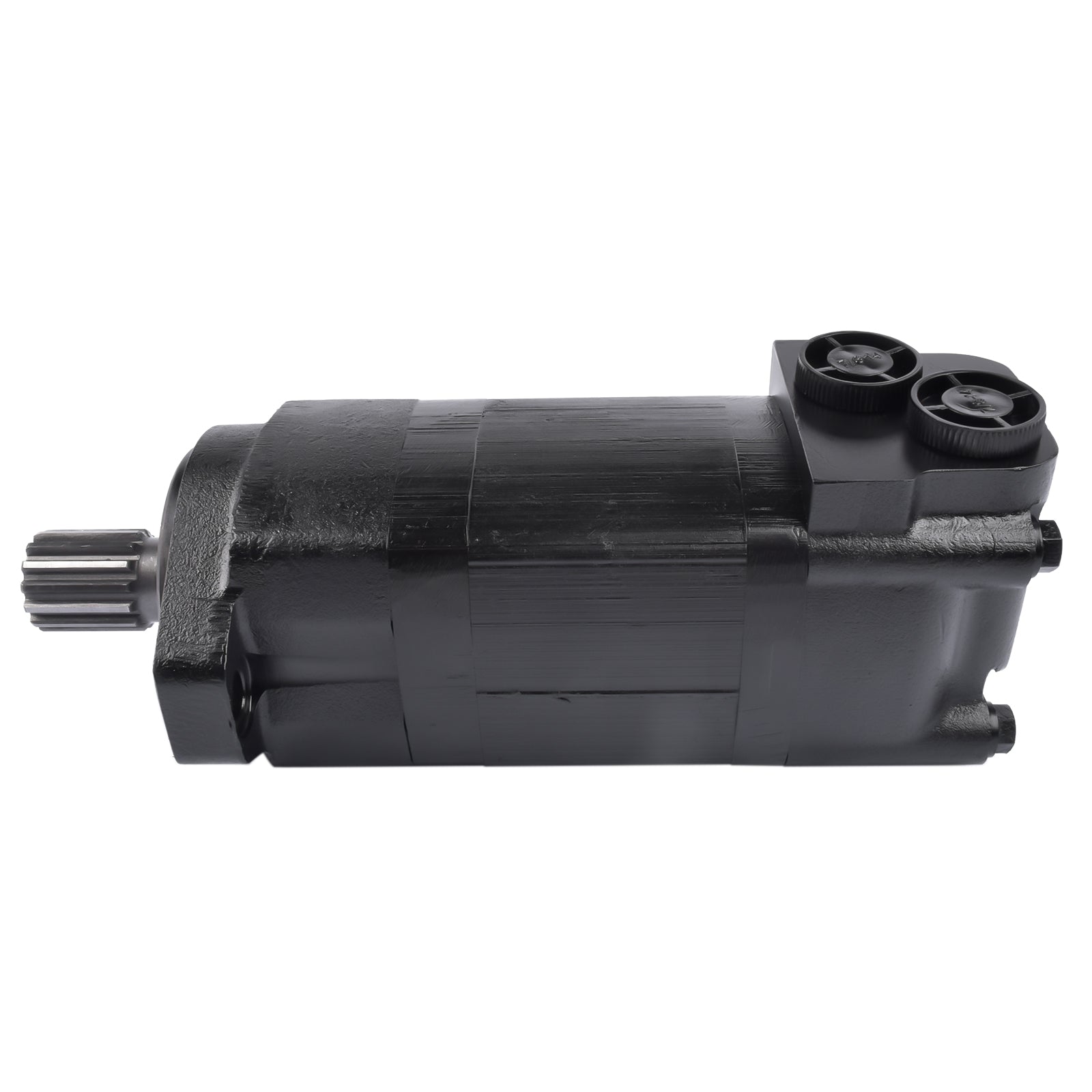

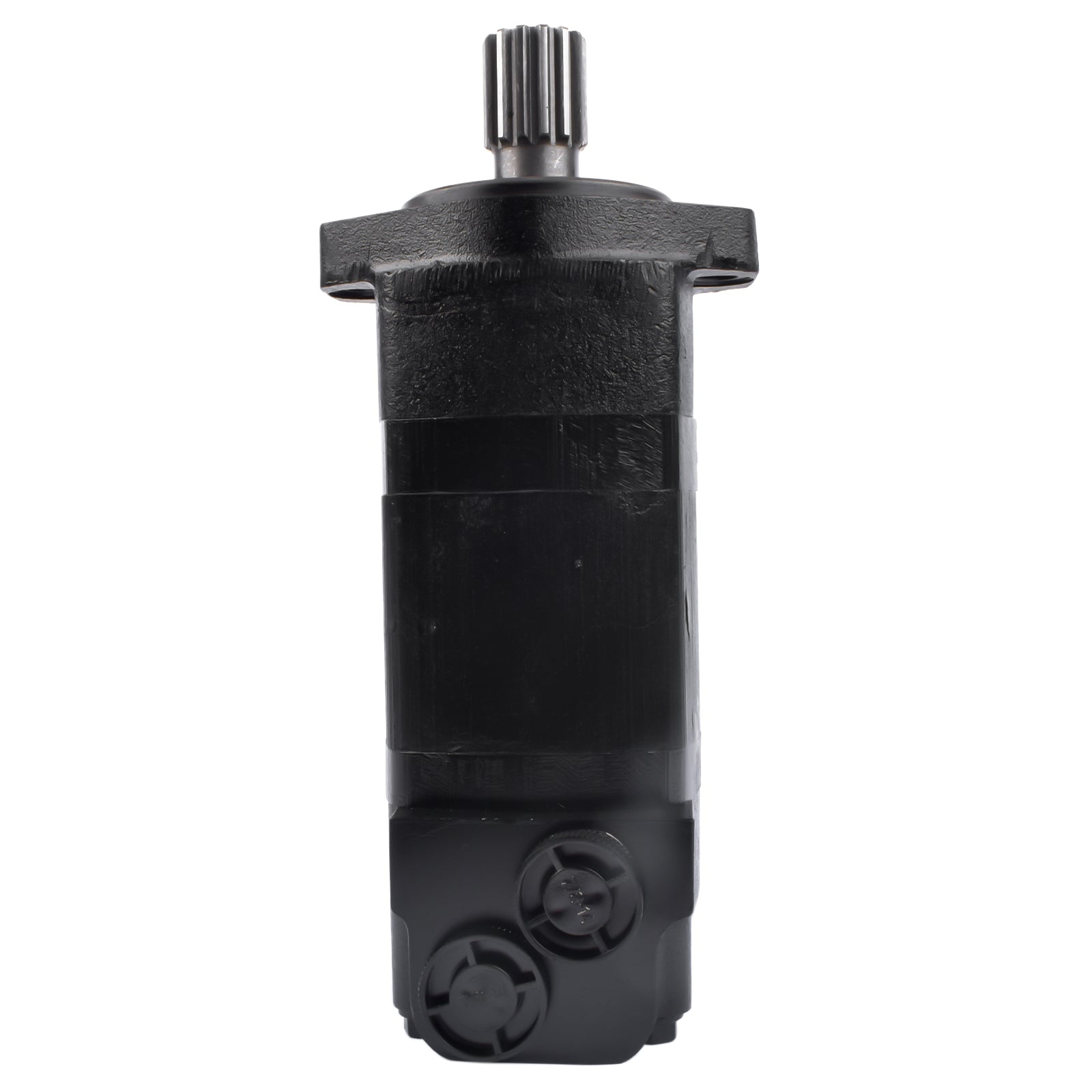

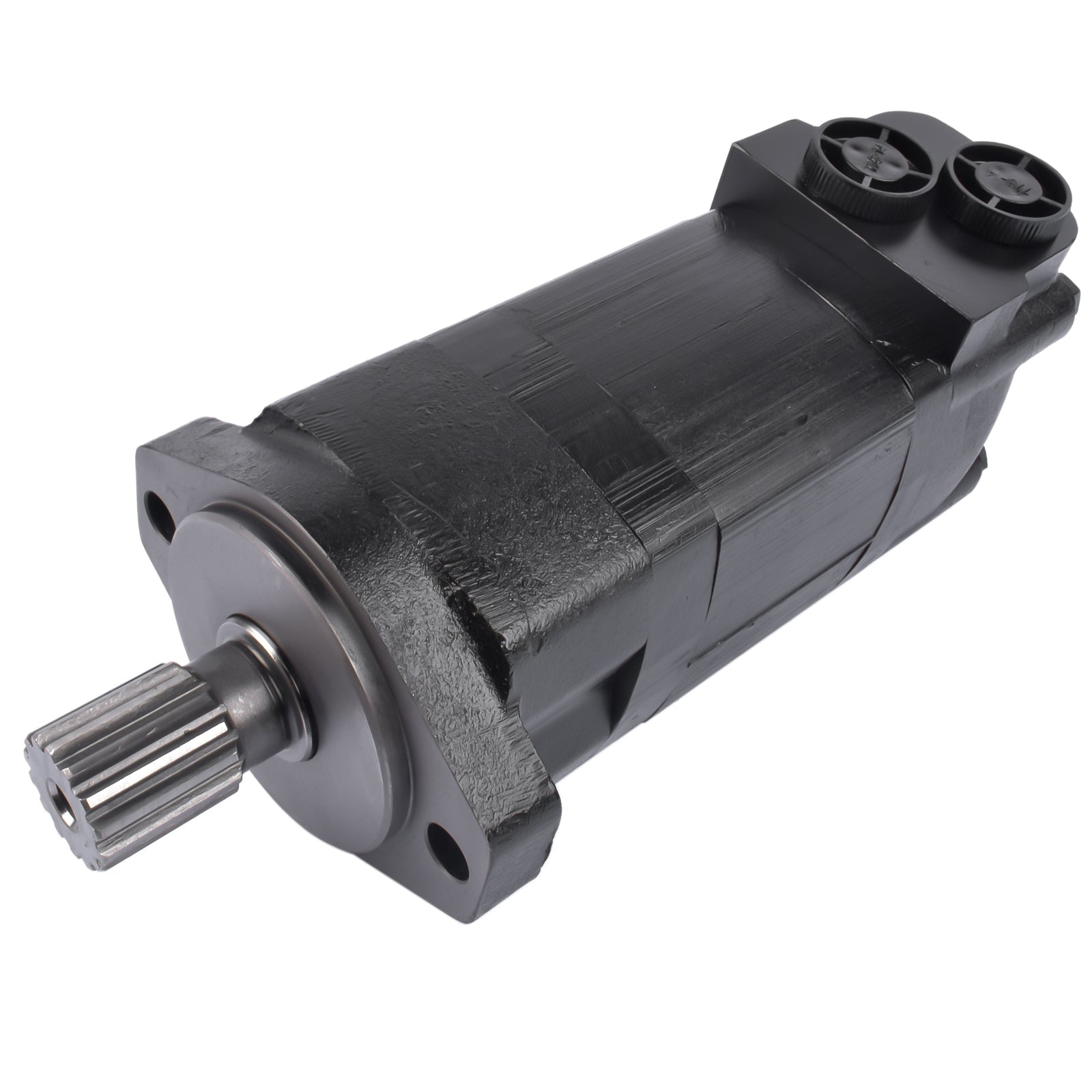

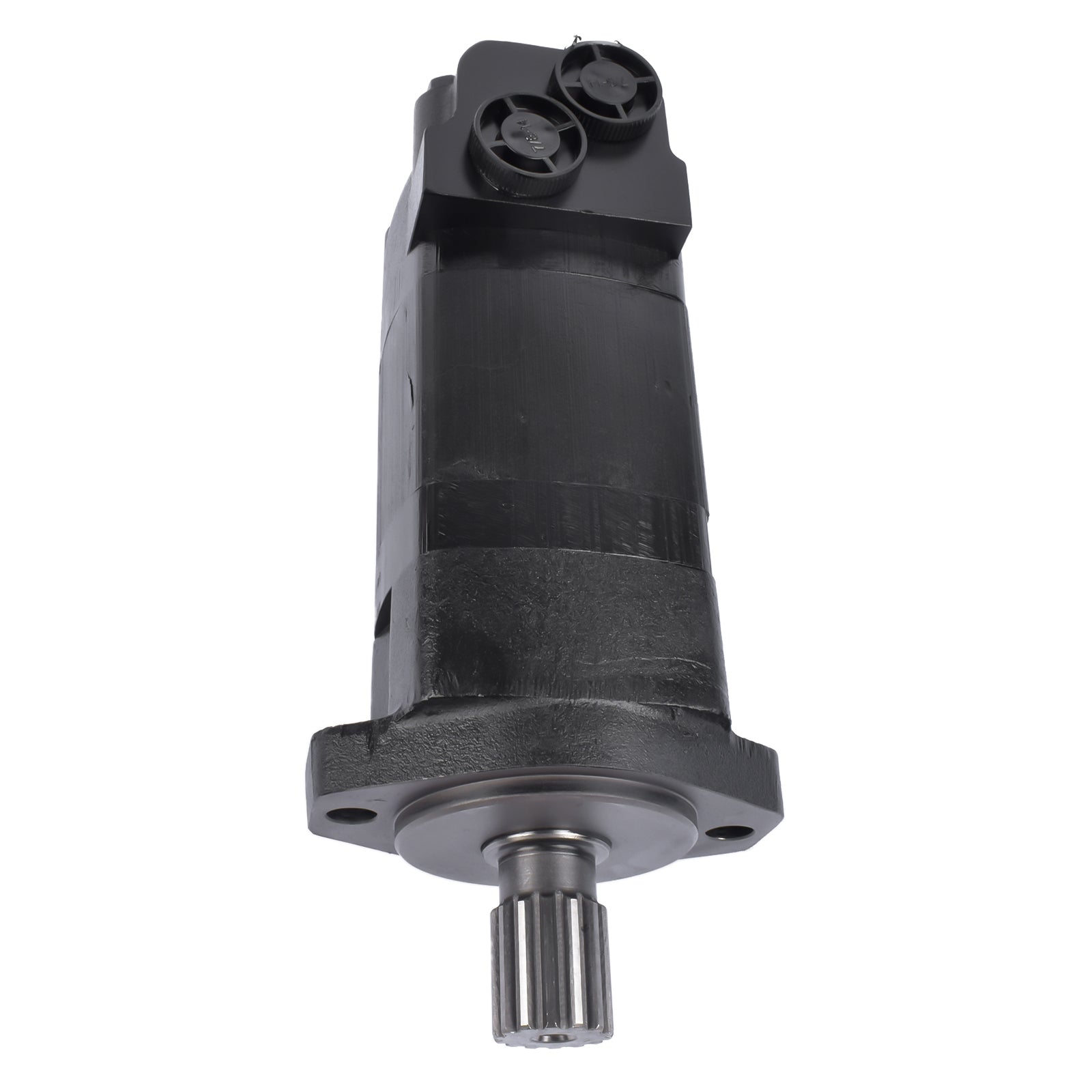

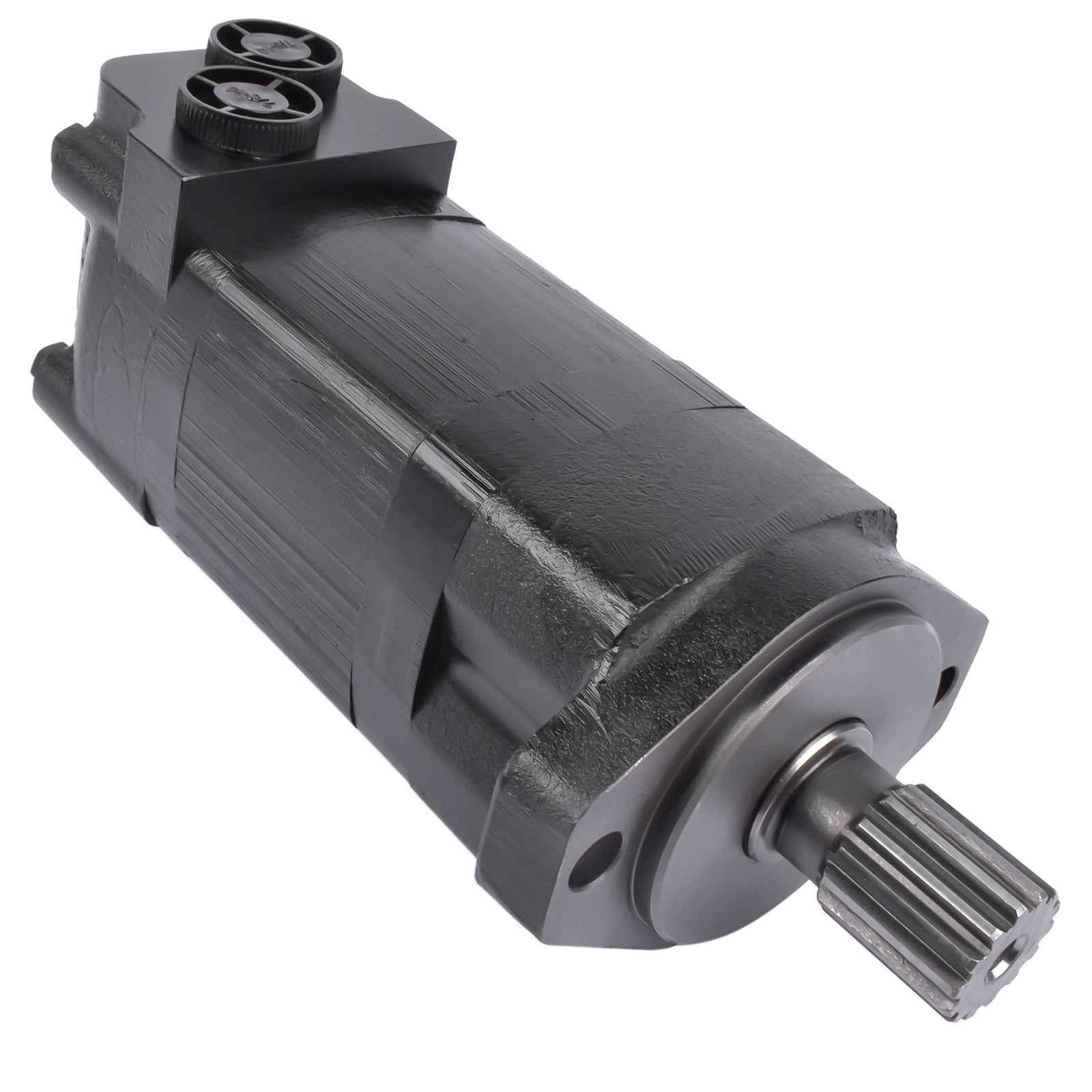

Hydraulic Motor 104-1229-006 104-1229 Fits For Eaton Char-Lynn 2000 Series

OEM Part Number

104-1229-006
1041229006
104-1229
1041229

Fit For the Following Models

Fit for Eaton Char-Lynn: 2000 Series

SERIES: 2000 SERIES
DISPLACEMENT: 393.8 CM3/R [24.03 IN3/R]
MOUNTING TYPE: STANDARD, 2 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE A
OUTPUT SHAFT: 31.75 [1.250] DIA. FLAT ROOT SIDE FIT, 14 TOOTH, 12/24 DP 30 DEG. INVOLUTE SPLINE WITH .375-16 UNC-2B THREAD IN END, 33.0 [1.30] MINIMUM FULL SPLINE LENGTH
PORTS: .875-14 UNF-2B SAE O-RING PORTS - STAGGERED PORTS
CASE FLOW OPTION: .4375-20 UNF-2B SAE O-RING PORT

Package Includes:

1x Hydraulic Motor
