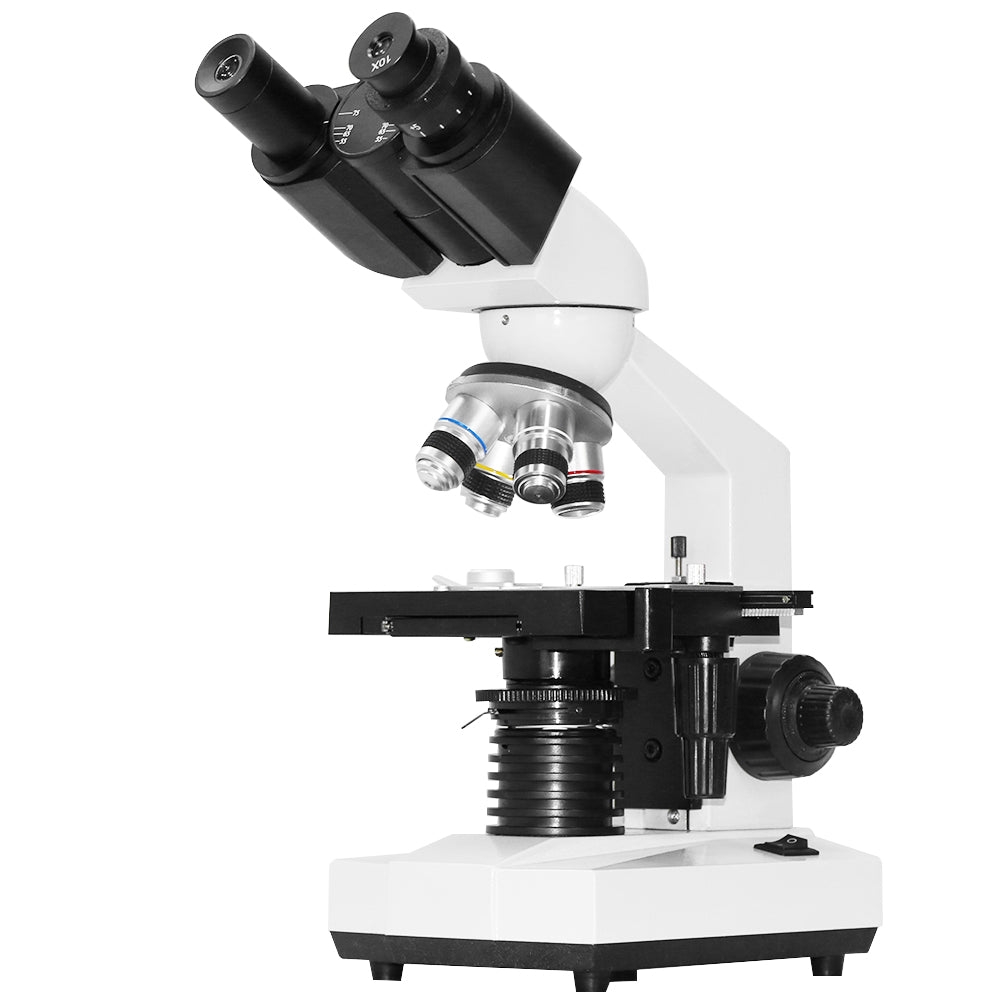

40X-2500X Binocular Microscope Compound Microscope Lab Microscope WF10X & WF 25X Eyepieces

Multi Magnification Levels: The binocular microscope is equipped with interchangeable two pairs of wide-field glass eyepieces ( WF10X and WF 25X ) and four DIN achromatic objectives (4X, 10X, 40XS, and 100XS, Oil), which could offer 6 magnification levels, 40X, 100X, 250X, 400X, 1000X and 2500X. Various magnifications can be adapted to different needs, providing clear and sharp magnified images for you.

Ergonomic Design: The viewing head is inclined at 45 degrees, which is ergonomic and can reduce neck fatigue. At the same time, 360° rotating binoculars can achieve better sharing and collaboration. Inter pupillary distances is adjustable from 55 to 75mm to avoiding losing focus. Eyepiece diopter adjustable on eye tube.

Precise Adjustment of Focus: By adjusting the movable caliper, the observation position of the specimen can be adjusted and fixed arbitrarily. The designs of coaxial coarse fine knobs   and the X/Y axis (translation range: 2.76 x 1.18 in / 70 x 30 mm.) can help the observer focus accurately and rapidly. In addition, the X/Y axis can also record coordinates, so that the observer can quickly return to a specific location and observe the cells.

Led Illumination & Condenser: The transmitted (bottom) LED light source is naturally soft and closer to natural light. At the same time, the brightness of the light can be adjusted by the dimmer to improve the observation effect. The 1.25 NA Abbe condenser with iris diaphragm processes the light for optimal sharpness and clarity.

Widely Usage:This laboratory compound microscope is suitable for teaching demonstrations in schools above junior high school, family parent-child interactive education, personal professional interest research, etc. In addition, it also plays an important role in the fields of cosmetic testing, biochemical experiments, clinical research, aquatic products & animal husbandry tests (checking for parasitic diseases, sperm activity, etc.).

Multi Magnification Levels: The binocular microscope is equipped with interchangeable two pairs of wide-field glass eyepieces ( WF10X and WF 25X ) and four DIN achromatic objectives (4X, 10X, 40XS, and 100XS, Oil), which could offer 6 magnification levels, 40X, 100X, 250X, 400X, 1000X and 2500X. Various magnifications can be adapted to different needs, providing clear and sharp magnified images for you.

Ergonomic Design: The viewing head is inclined at 45 degrees, which is ergonomic and can reduce neck fatigue. At the same time, 360° rotating binoculars can achieve better sharing and collaboration. Inter pupillary distances is adjustable from 55 to 75mm to avoiding losing focus. Eyepiece diopter adjustable on eye tube.

Precise Adjustment of Focus: By adjusting the movable caliper, the observation position of the specimen can be adjusted and fixed arbitrarily. The designs of coaxial coarse fine knobs   and the X/Y axis (translation range: 2.76 x 1.18 in / 70 x 30 mm.) can help the observer focus accurately and rapidly. In addition, the X/Y axis can also record coordinates, so that the observer can quickly return to a specific location and observe the cells.

Led Illumination & Condenser: The transmitted (bottom) LED light source is naturally soft and closer to natural light. At the same time, the brightness of the light can be adjusted by the dimmer to improve the observation effect. The 1.25 NA Abbe condenser with iris diaphragm processes the light for optimal sharpness and clarity.

Widely Usage:This laboratory compound microscope is suitable for teaching demonstrations in schools above junior high school, family parent-child interactive education, personal professional interest research, etc. In addition, it also plays an important role in the fields of cosmetic testing, biochemical experiments, clinical research, aquatic products & animal husbandry tests (checking for parasitic diseases, sperm activity, etc.).

Specifications：

1. Model: 40X-2500X Binocular

2. Power Supply: 110V

3. Eyepiece: Wide-field, WF10X and WF25X

4. DIN achromatic objectives: 4X, 10X, 40XS, 100XS, Oil

5. Magnifications: 40X-2500X (40X, 100X, 250X, 400X, 1000X, 2500X)

6. Viewing Head: 360° Swiveling, 45° Inclined

7. Condenser: NA1.25 Abbe Condenser

8. Illumination: Transmitted (lower) LED Light

9. Stage: Double-layer Mechanical Stage

10. Focusing System: Coaxial Coarse and Fine Focus

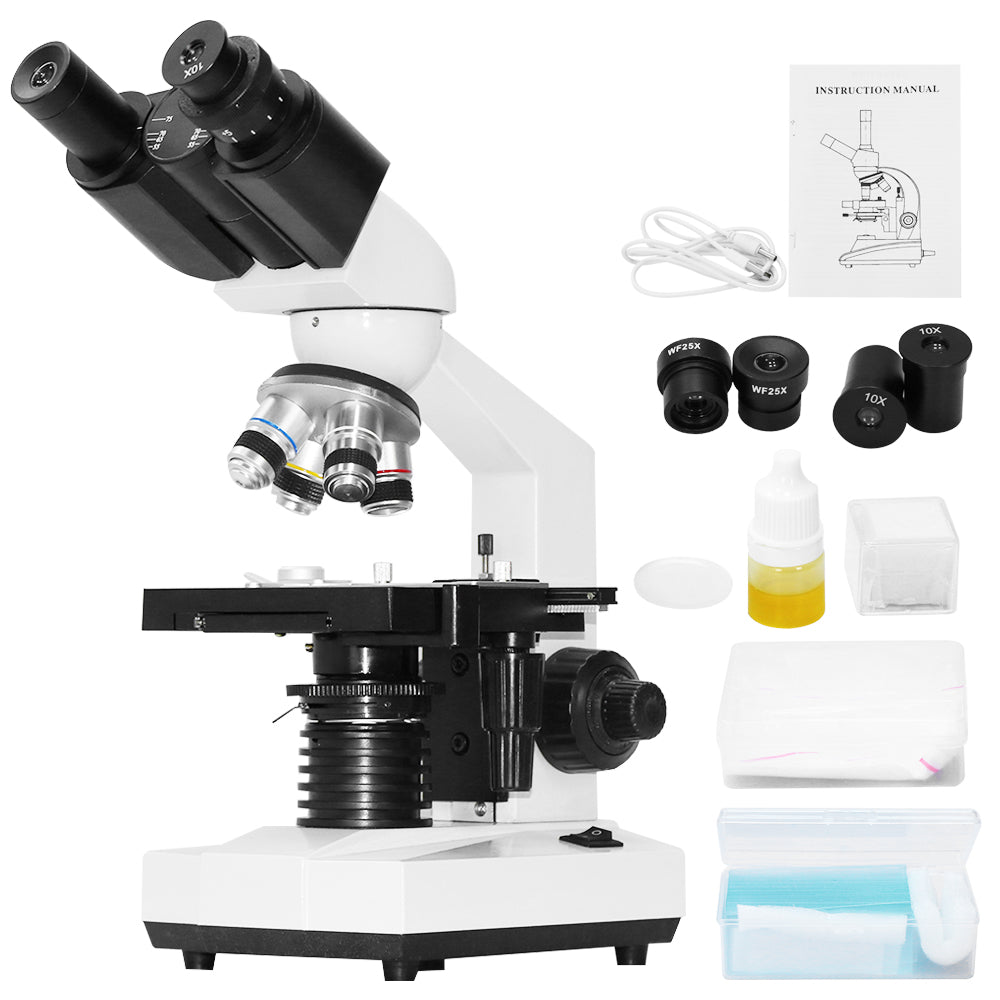

Package Included:

1 x Compound Microscope

2 x WF10X Eyepieces

2 x WF25X Eyepieces

100 x Cover Glasses

50 x Glass Sliders

5 x Cleaning Paper

1 x Blue Filter

1 x Bottle of Sample Immersion Oil

1 x USB Charger Cable

1 x English Manual
