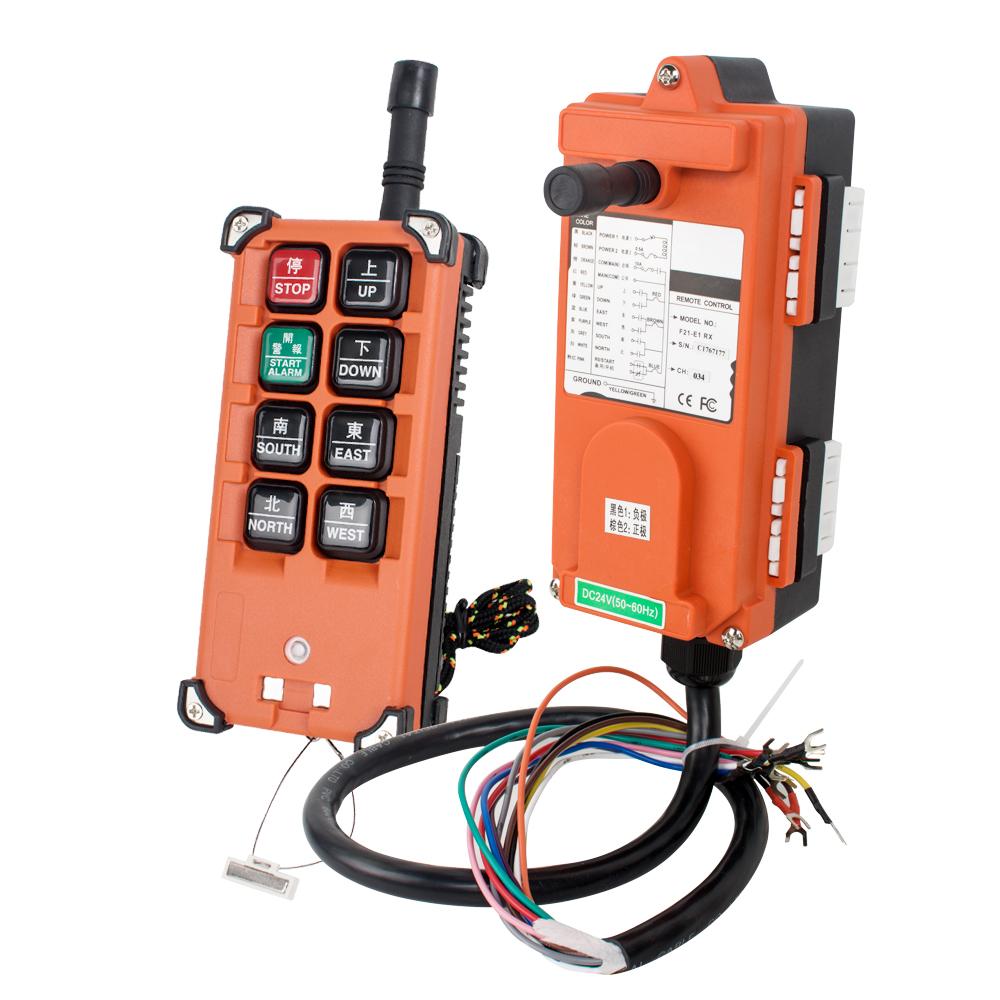

Transmitter&Receiver Hoist Crane Radio Industrial Wireless Remote Control F21E1B

• 8 operation buttons, control points up to 8.
• With battery voltage warning system, circuit is cut off during low voltage.
• Safety key switch to prevent from unauthorized users.
• Up/down, east/west, north/south can be set as to mutual inhibition or not.
• Spare key can be set to start, acceleration, toggle switch, general or other functions.

Specifications:

Enclosure: Glass-Fiber PA

Control distance is up to 100 meters

Safety code: over 4.3 billions unique ID code available

Temperature range: -35℃ ~ +80℃

Enclosure protection class: IP65

Transmitter power: 3V DC (2 AA batteries last up to 4 months)

Based on Microsoft Windows software for easy customize configuration

Structure: Glass-Fiber PA

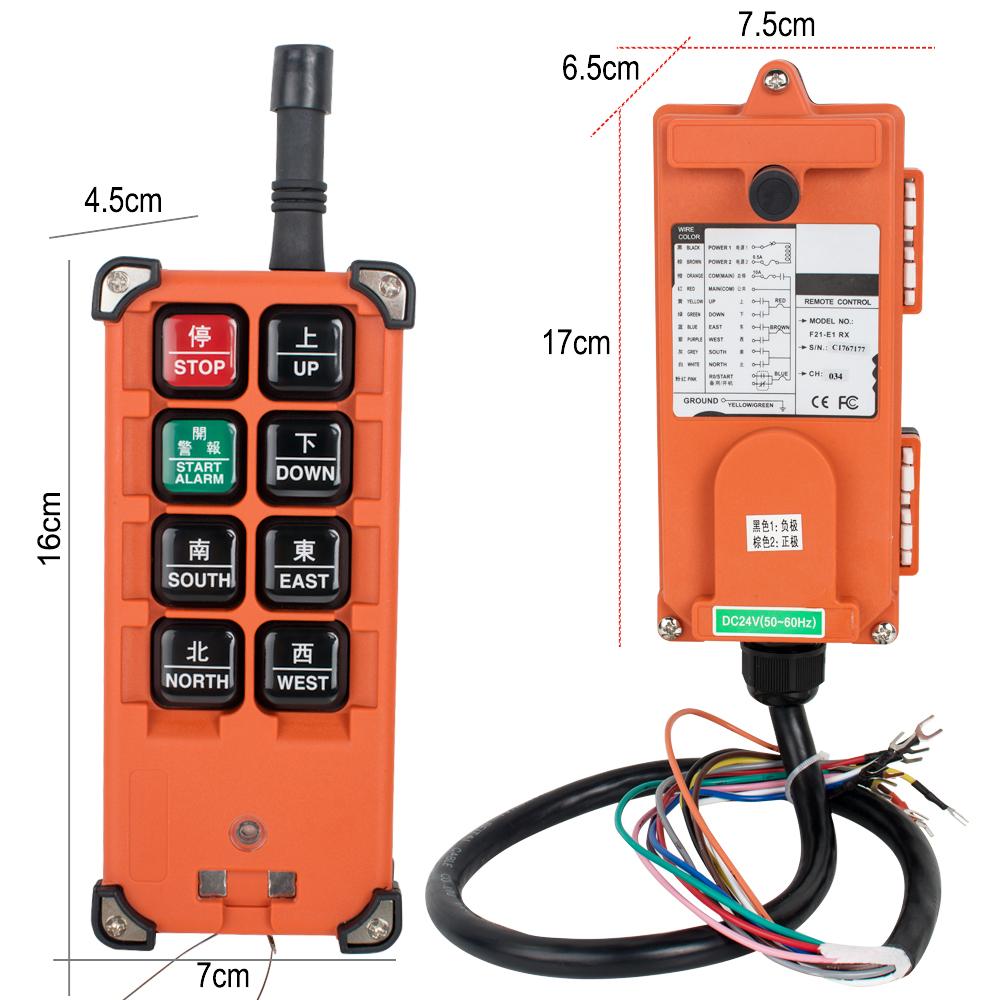

Dimension: 164x75x46mm

Weight: 380g(without batteries)

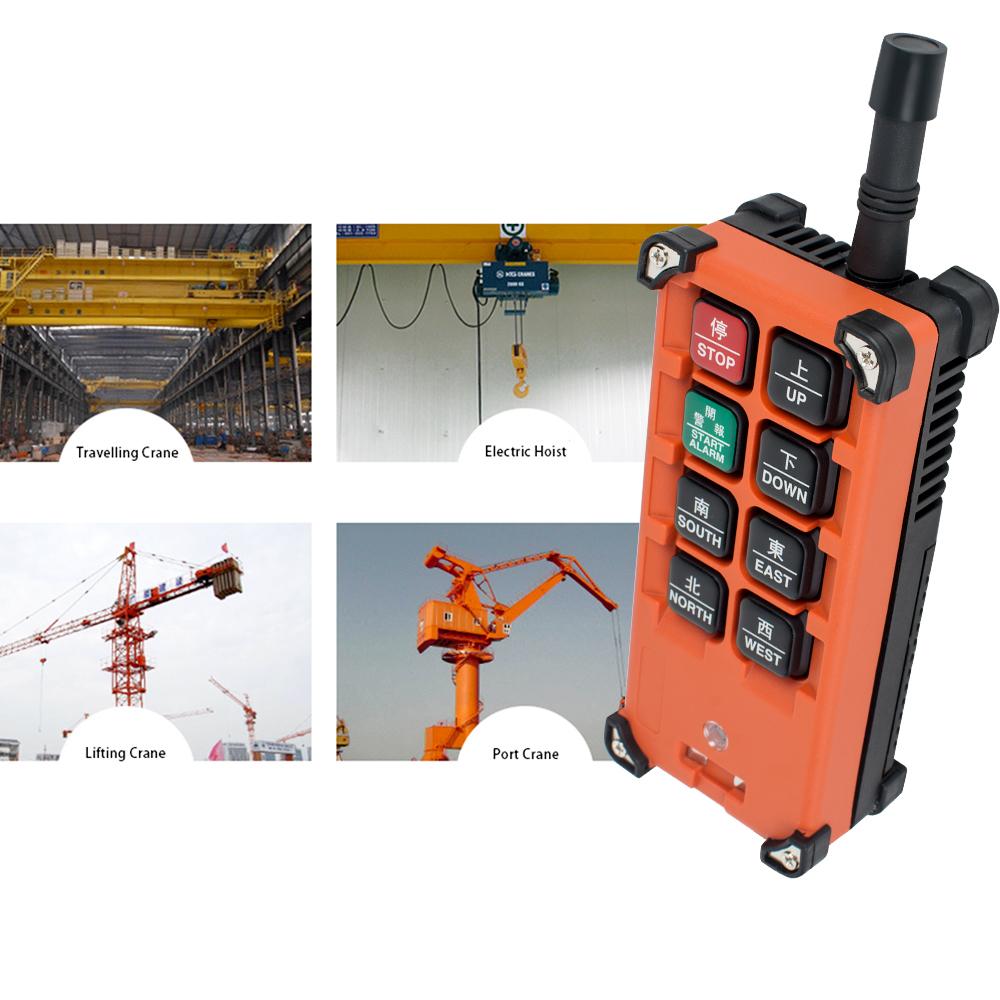

Application: Single-hook, single-speed electric hoist or hoist-type traffic and industrial remote control with less than 9 contacts

Receiver

Power: 380V/220V/110/36V AC, or 12V/24V/48 DC(please kindly inform us the power you need)

Output contact capacity: 5A sealed relay output(AC 250V/10V relays, 5A fuse contacts)

Dimension: 185x85x85mm

Weight: 550g
